Household Appliances Miniature High Power Magnetic Latching Relay Hfe20 Electric Parameter Relay

Product Categories
Zhejiang Ascendant Technologies Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Household Appliances Miniature High Power Magnetic Latching Relay Hfe20 Electric Parameter Relay

Model NO. : HFE20

Theory : Electromagnetic Relay

Usage : Household Appliances Relay

Phase : 2

Electricity Type : Ac

Number of Pole : 2

Load : High Power Relay

Protective Characteristics : Sealed Relay

Action Principle : Electromagnetic Type

Size : Miniature

Type : Electric Parameter Relay

Trademark : HF

Specification : (29.0 x 12.7 x 15.7)mm

Origin : China

Port : Xiamen, China

Payment Terms : L/C, T/T, Western Union, Paypal

Place of Origin : China

Certification : ISO 9001

MOQ : 20

Price : Negotiable

Contact Now

Basic Info.

Model NO.
HFE20
Theory
Electromagnetic Relay
Usage
Household Appliances Relay
Phase
2
Electricity Type
Ac
Number of Pole
2
Load
High Power Relay
Protective Characteristics
Sealed Relay
Action Principle
Electromagnetic Type
Size
Miniature
Type
Electric Parameter Relay
Trademark
HF
Specification
(29.0 x 12.7 x 15.7)mm
Origin
China

Product Description

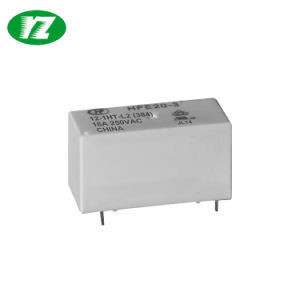

Miniature High Power Magnetic Latching Relay HFE20
Relay Type:HFE20
· 16A switching capability
· Latching relay
· Have passed TV-8 (UL) certification
· Inrush current Capacitor
500A/2ms and 320A/2ms
(Contact material: W+AgSnO2 and AgSnO2)
· Environmental friendly product (RoHS compliant)
· Outline Dimensions: (29.0 x 12.7 x 15.7)mm
Contact Data
Contact Arrangement:1A, 1B, 1C
Contact Resistance:AgSnO2 , W+AgSnO2
Contact Rating:16A 250VAC
Max. switching Voltage:277VAC
Max. Switching Power:4000VA
Mechanical Endurance:1×106OPS
Electrical Endurance:See "Contact rating"
Characteristics
Insulation Resistance:1000MΩ
Dielectric Strength:4400VAC
Operate Time (max):10ms
Release Time (max):10ms
Ambient Temperature:-40ºC ~ 85ºC
Terminal Type:THT
Coil Data
Nominal Voltage:(3~24)VDC
Coil Power:0.4W, 0.6W
Contact Info.:
Xiamen Universal Electronic Co.,Ltd
Add: No.318, South Tongji Road, Jimei District, 361021, Xiamen City, China
Tel: +86-592-6020808
Fax: +86-592-5664223
Mob: +86-15606005688
